Product Use

This 12 VDC Relay is especially developed for Automotive use as servo change over switch.

Low current (Typically 140 to 150 milliAmperes) through the Relay Coil electromechanically switches ON a High current Load (up to 40A).

In constant ON applications it can carry up to 40 Amperes, while in pulsed applications up to 30 Amperes may be switched momentarily.

Millions of these devices have been reliably used since 1987 in following applications:

Headlight Control

Air Horn Servo

Fog light Control

Driving light Control

Intermittent Wiper Control

Ventilation Fan Control

Radiator Fan Control

Mounting Bracket

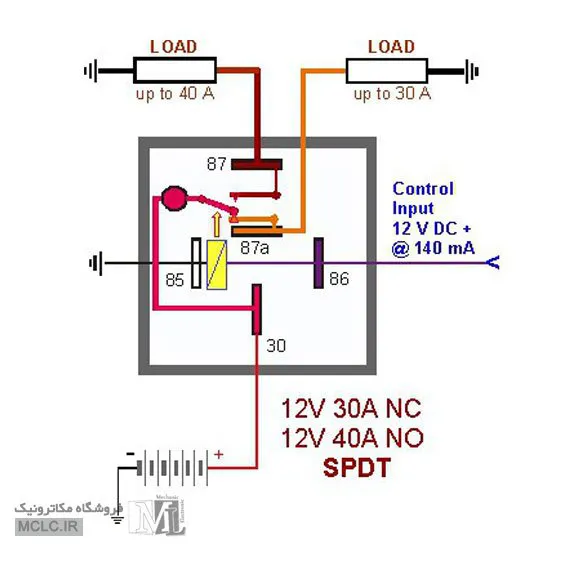

Single Pole, Double Throw (On/Off, Off/On)

Nominal Voltage 12V

Operating / Releasing Time ≤ 10 ms / ≤ 5 ms

10,000,000 Mechanical Cycles Life

Coil Resistance 85 Ohm ± 10%

Coil source voltage (max)	V_DS	18	V
Coil on-state resistance	R_DS(on)	85	Ohm
Continuous drain current TC = 25 °C	I_D	40	A
Continuous drain current TC = 100 °C	I_D	30	A
Pulsed drain current TC = 25 °C	I_D	30	A
Power dissipation TC = 25 °C	P	1.7	W
Coil threshold voltage	V_C(th)	<8	V
