مینی هدر برد SIM800C HW-537 ماژول GPS GSM BLUETOOTH

مینی هدر برد SIM800C HW-537 ماژول GPS GSM BLUETOOTH

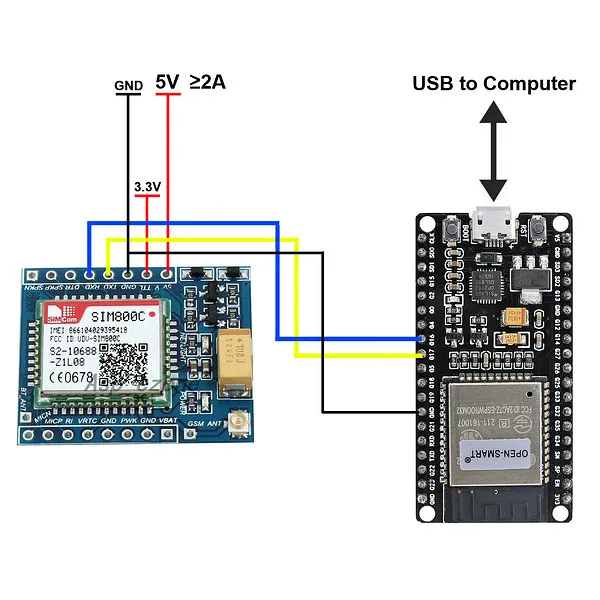

هدر برد ماژول SIM800C که روی برد راه انداز مونتاژ شده و امکان دسترسی به کلیه پایه ها بوسیله هدر برد فراهم است

GSM/GPRS Module
SIM800C is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.

SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.

General features
Quad-band 850/900/1800/1900MHz
GPRS multi-slot class 12/10
GPRS mobile station class B
Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
Weight: 1.3g
Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
Supply voltage range 3.4 ~ 4.4V
Low power consumption
Operation temperature:-40℃ ~85℃

Specifications for GPRS Data
GPRS class 12: max. 85.6 kbps (downlink/uplink)
PBCCH support
Coding schemes CS 1, 2, 3, 4
PPP-stack
USSD

Specifications for SMS via GSM/GPRS
Point to point MO and MT
SMS cell broadcast
Text and PDU mode

Software features
0710 MUX protocol
Embedded TCP/UDP protocol
FTP/HTTP
MMS
POP3/SMTP
DTMF
Jamming Detection
Audio Record
SSL
Bluetooth 3.0(optional)

Specifications for voice
Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
Hands-free operation （Echo suppression）

Interfaces
42 SMT pins including
Analog audio interface
RTC backup
USB interface
Serial interface
Interface to external SIM 3V/1.8V
GPIO
ADC
GSM Antenna pad
Bluetooth Antenna pad
Compatibility AT cellular command interface

Certifications:
CE
FCC
TA
ROHS
REACH
GCF
ACMA
CCC
CTA
