ماژول شارژر باتری لیتیوم سه سل 10A

ماژول شارژر باتری لیتیوم سه سل 10A با حفاظت

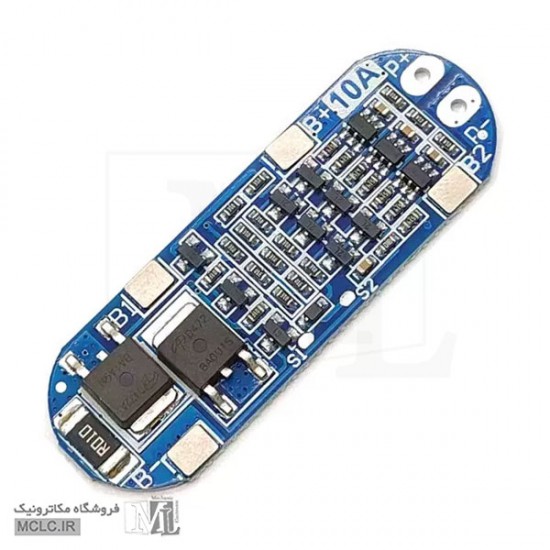

3S 10A 12V Lithium Battery Charger Protection Board Module for 18650 Li-ion Battery Cell Charging BMS 10.8V 11.1V 12.6V

Specifications:

Size: approx.50x16x1mm
Maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V
Over-discharge detection voltage: 2.3-3.0V
Maximum working current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40 to 50degree
Storage temperature: -40 to 80degree
Quiescent current: less than 6uA
Internal resistance: less than 60m ohm
Service life: more than 30,000 hours
Features:

Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of battery pack.
Suitable for:
10.8V (Rated voltage of polymer battery)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (Lithium battery full charge voltage)
