ماژول زیگبی سریال با CC2530

ماژول زیگبی سریال

ویژگی ها:

• ولتاژ ورودی: 2.6 تا 3.6 ولت
• حداکثر برد: 1600متر
• پروتکل ارتباطی: uart
• پروتکل وایرلس: Zigbee2007
• حداکثر جریان مصرفی:  120 میلی آمپر

DRF1605H ارجینال

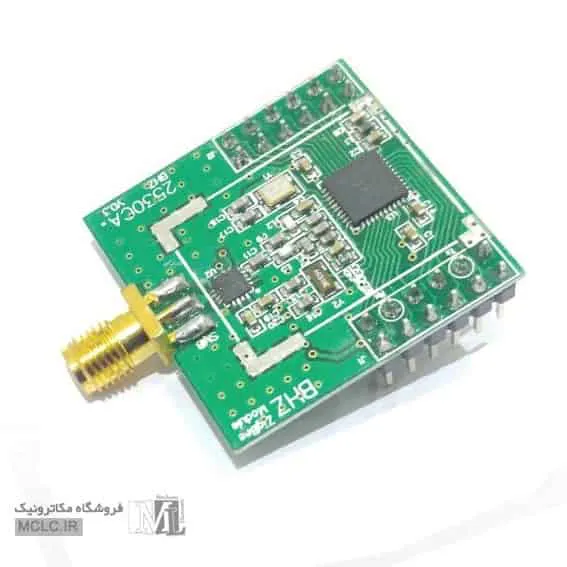

BHZ ZIGBEE MODULE با آنتن

This module features serial to Zigbee wireless connection and pin pitch of 2.54 mm making it compatible with variety of boards. It can also directly interface with RS485 device and does not require external power supply. It can be powered via USB port power supply.

This module has built in RS485 direction control and can directly drive RS485, RS232 chip, and USB turn RS232 chip.

Specifications
IC: CC2530F256, 256KFlash, TI latest generation Zigbee SOC ship
Operating Voltage: 3.3 VDC, 2.6 V to 3.6 V
Operating Temperature: -40 ˚C to +85 ˚C
Serial Port Rate: 38400 bps (default), can be set to 9600 bps, 38400 bps, 57600 bps, 115200 bps
Radio Frequency: 2.4G (2460 MHz), can be set via serial command (2405 MHz – 2480 MHz, step: 5 MHz)
Wireless Protocol: Zigbee 2007
Working Current: 120 mA (emission),  80 mA(average), 45 mA(max receiving), 40mA (standby max)
Receiver Sensitivity: -110 dBm
Interface: UART 3.3V TX-RX, RS485, RS232, USB turn RS232
