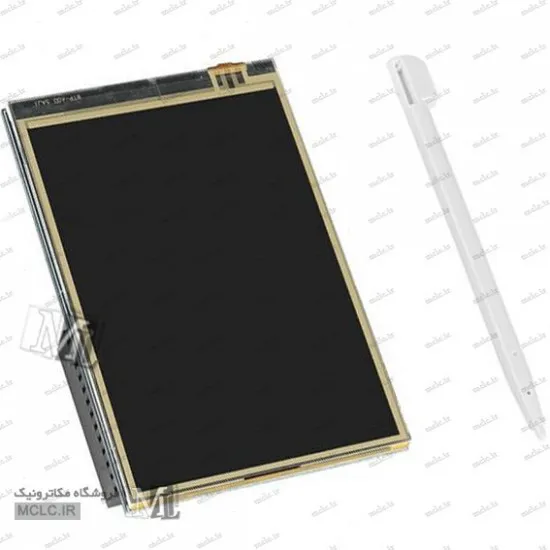

شیلد نمایشگر لمسی 3.5 اینچ رسپبری | رزبری

• نمایشگر نوع TFT
• طراحی شده جهت برد رسپبری پای مدل B و B+
• سایز 3.5 اینچی
• رزولوشن  320*480 پیکسل
• دارای صفحه لمسی
• سازگار با سیستم عامل RASPBIAN



Features:

Support Access Raspberry Pi 2 generation / B / B +, eliminating the need to buy bulky HDMI monitor

320 × 480 resolution for sharper display

Provide convenient human interface for Raspberry Pi, with mobile power use, can be anywhere DIY design

Raspbian support system that allows your system:

Support for video playback (MP4 and other formats)

Support for touch control camera (17 kinds of camera mode)

Support soft keyboard (mouse and keyboard can also be controlled from the system)

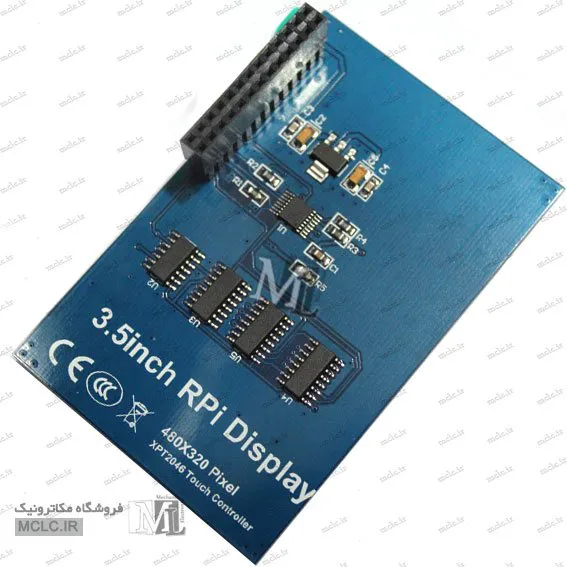

Interface definition:

1,17: 3.3V: Positive supply (3.3V power input)

Twenty four: 5V: Positive supply (5V power input)

3,5,7,8,10,12,13,15,16: NC: NC

6,9,14,20,25: GND: Power Ground

11: TP_IRQ: Touch panel interrupt, the touch panel is pressed is detected, compared with low

18: LCD_RS: Instruction / data register select

19: LCD_SI / TP_SI: LCD display / touch panel SPI data input

Twenty one: TP_SO: SPI data output of the touch panel

Twenty two: RST: Reset

Twenty three: LCD_SCK / TP_SCK: LCD display / touch panel SPI clock signal

Twenty four: LCD_CS: LCD chip select signal, low choose LCD

26: TP_CS: The touch panel chip select signal, low touch panel selection
