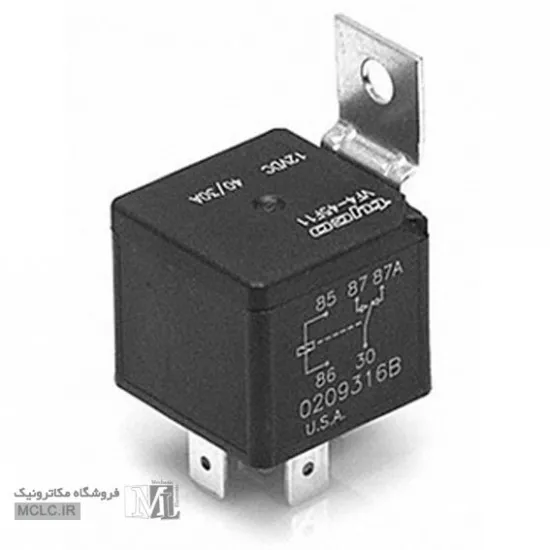

رله VF4-45F11
12V
1 کنتاکت
5 پین 40/30 آمپر
Product Use
This 12 VDC Relay is especially developed for Automotive use as servo change over switch.
Low current (Typically 140 to 150 milliAmperes) through the Relay Coil electromechanically switches ON a High current Load (up to 40A).
In constant ON applications it can carry up to 40 Amperes, while in pulsed applications up to 30 Amperes may be switched momentarily.
Millions of these devices have been reliably used since 1987 in following applications:
Headlight Control
Air Horn Servo
Fog light Control
Driving light Control
Intermittent Wiper Control
Ventilation Fan Control
Radiator Fan Control
Features
Mounting Bracket
Single Pole, Double Throw (On/Off, Off/On)
Nominal Voltage 12V
Operating / Releasing Time ≤ 10 ms / ≤ 5 ms
10,000,000 Mechanical Cycles Life
Coil Resistance 85 Ohm ± 10%
Product Specifications
| Coil source voltage (max) | VDS | 18 | V |
| Coil on-state resistance | RDS(on) | 85 | Ohm |
| Continuous drain current TC = 25 °C | ID | 40 | A |
| Continuous drain current TC = 100 °C | ID | 30 | A |
| Pulsed drain current TC = 25 °C | ID | 30 | A |
| Power dissipation TC = 25 °C | P | 1.7 | W |
| Coil threshold voltage | VC(th) | <8 | V |
| خصوصیات رله ها | |
| نوع رله | ماشینی |
| ولتاژ سیم پیچ | 12 ولت |
| تعداد کنتاکت | 1 کنتاکت |
| تعداد پین / پایه ها | 5 پین |
| جریان خروجی | 30/40 آمپر |
رله ماشینی VF4-45F11
