برد اورنج پای نسخه لایت 512 مگابایت

Hardware Specification

CPU

H3 Quad-Core Cortex-A7 H.265 / HEVC 4 K

GPU

Memory (SDRAM)

512 MB DDR3 (shared with GPU)

Onboard storage

TF card (max. 64 GB) / MMC Card Slot

Wi-fi antenna

YES

Video Input

A CSI camera input connector:

It supports 8-bit YUV422 CMOS Sensor Interface

Supports CCIR656 protocol for NTSC and PAL

SM supports pixel camera sensor

It supports video capture solution up to 1080P @ 30fps

Audio input

Mic

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI function 30

Audio output

  HDMI

Power supply

USB 2.0 ports

Two USB 2.0 host, USB 2.0 OTG

buttons

Power button

low-level peripherals

GPIO (1x3) Pin

UART floor.

LED

Power LED and status LED

Key

Power

OS supported

Android Lubuntu, debian, Rasberry Pi image

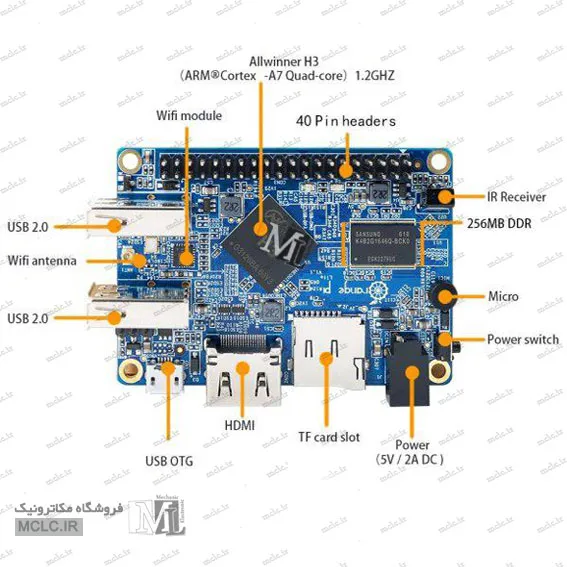

Interface Definition

Product Size

69 mm × 48 mm

Weight

36 g
