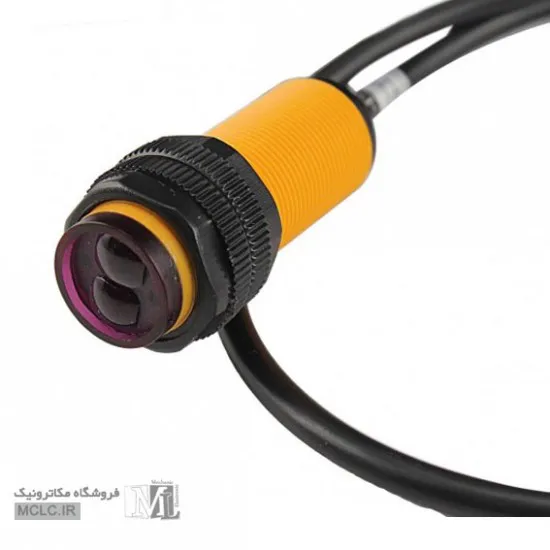

ماژول مادون قرمز تشخیص فاصله | مانع E18-D80NK
This is a set of transmitter and receiver in one of the photoelectric sensors. Detection distance can be adjusted according to the requirements. The sensor has a detection distance, by small visible light interference, cheap, easy to assemble, easy to use features, can be widely used in robot obstacle avoidance, line piecework and many other automation products.
1:to detect or count object (transparent or opaque).
2:by robot car to detect obstacle and then avoid it.
3:as a photoelectric switch.
Technical parameters of the photoelectric switch E18:
1, the output current DC / SCR / Relay Control output: 100mA / 5V power supply
2, the current consumption of the DC <25mA
3, response time <2ms
4, point angle: ≤15 °, effective distance 3-80CM adjustable
5, detect objects: a transparent or opaque body
6, the working environment temperature: -25 deg.] C ~ + 55 deg.] C
7, the standard sensing object: sunlight 10000LX less incandescent 3000LX the following
8, case material: plastic
