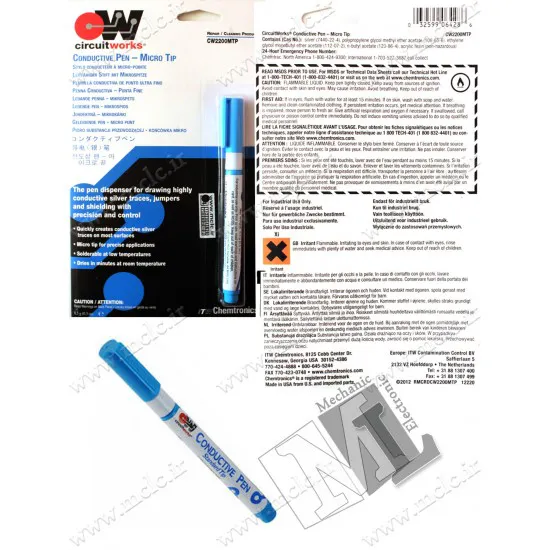

این قلم حاوی پلیمر اختلاط یافته با نقره می باشد که در تعمیرات ترک های (track) معیوب در بردهای الکترونیکی، ترمیم اتصالات قطعات الکترونیکی، ساخت سریع جامپرها روی برد و امثال آن کاربرد دارد.

این محصول با دو نوع نوک MTP (نوک ظریف) و STP (نوک استاندارد) در گزینه های کالا قابل انتخاب است.

  • Quickly creates conductive silver traces
  • Valve pen tip for easy applications
  • Solderable at low temperatures
  • Superior electrical conductivity
  • Dries in minutes at room temperature
  • Choice of Micro Tip (MTP) for fine lines or Standard Tip (STP) for wider lines
  •
    • :APPLICATION
    •
    • Repairs traces
    • Links components
    • Makes smooth jumpers
    • Shields electronics

    The CW2200 Conductive Pens: Tips and Tricks for Best Performance

    The CircuitWorks Conductive Pens, part numbers CW2200STP and CW2200MTP, areamong Chemtronics most popular products. These pens have a wide range of uses,from drawing traces between components on proto-type circuit boards, coating components and assemblies to shield them from electrical and radio frequency interference, to repairing broken solder traces on PCBs and broken grid lines on automobile rear-windshield defoggers. The silver-filled acrylic polymer in the CW2200 pens provides a quick, easy alternative to building solder traces between components

    and can effect repairs where conventional soldering techniques are not practical or possible. The nature of the conductive “ink” does lead to issues with regard to shelflife, flexibility, clogging, conductivity, curing and thinning which I would like to address in this article.Tip Assembly and Trace Dimensions

    The tip of the CW2200 Conductive Pens is really a spring-loaded retractable stopper.

    As you press the tip of the pen against a hard surface, the tip retracts into the tipassembly, opening a channel through which the conductive ink flows out of the pen.

    Ejection of the ink is aided by gently squeezing the flexible pen barrel. The CW2200STP (standard tip pen) has an orifice size of 1 mm and will draw traces

    that will average 2.0 mm in width. The CW2200MTP (micro-tip pen) has an orifice sizeof 0.7 mm and will draw traces that average 1.5 mm in width. A skilled technician, with

    experience in using the CW2200 pen applicators should be able to produce consistent

    traces that will be narrower than the dimensions cited. If even narrower trace widths

    are required, the ink can be applied using a fine artist’s brush or pen. A stencil can also

    be prepared to facilitate the drawing of fine pitch traces. The CW2200 Conductive Ink

    is also available in bulk form in a 100 gram bottle for large-volume brush or pen

    applications.

    Shelf-Life and Clogging

    The unopened CW2200 Conductive Ink Pens have a shelf-life of 18 months from its

    date of manufacture. The four-digit manufacturing date code appears on a sticker

    affixed to the back of the product display/instruction card. This code is read as follows:

    the first digit indicates the year of manufacture (4 = 2004, 5 = 2005, etc.); the nextthree digits indicate the consecutive day, from 001 to 365, on which the product wasmade. After this time ITW Chemtronics can no longer guarantee the performance of

    the product.



خصوصیات ظاهری
وزن8.5 گرم
خصوصیات عملکردی
دمای کارکردپیشنهاد میشود در دماهای پایین مورد استفاده قرار گیرد
خصوصیات عمومی
کشور سازندهامریکا
