برد راه انداز GPRS DEVELOPMENT BOARD ماژول SIM800

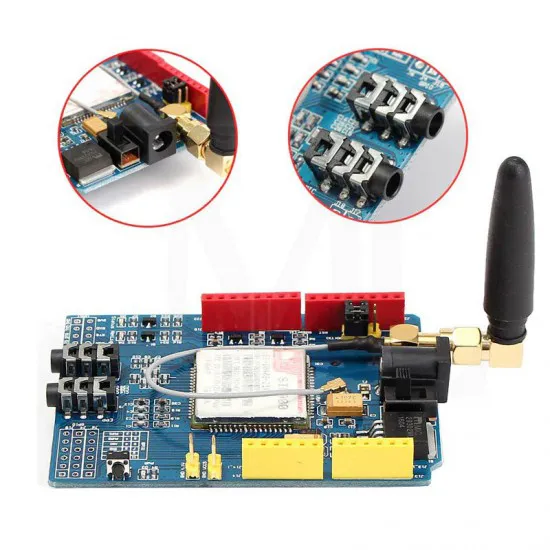

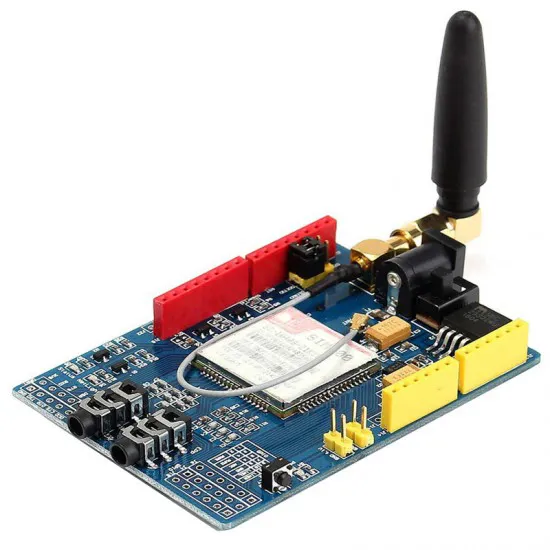

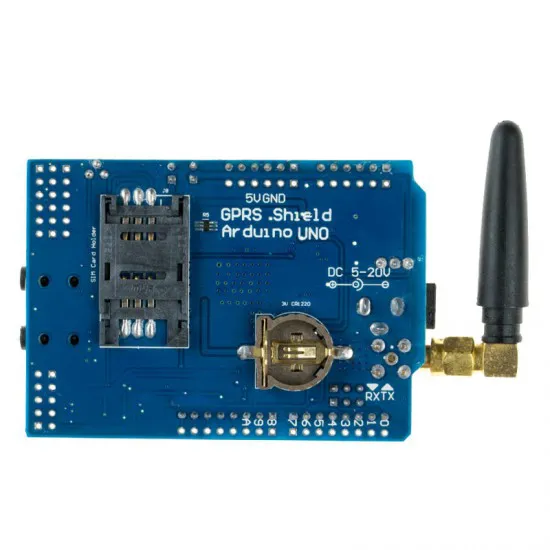

SIM800 SIM-800 GPRS Development Board Quad-Band GSM Shield Compatible For Arduino Electrical Circuitry & Parts

This cellular shield is based on the SIM800 module from SIMCom Wireless Solutions. The SIM800 is a quad-band (850/900/1800/1900 Mhz) cellular module with 2G connectivity. Just add an active SIM card and your Arduino can connect to the internet, make a phone call, or send a text message anywhere it has reception. This is a great solution for a remote data logging system or closing your garage door with a text message.

وضعیت رجیستری برد راه انداز GPRS DEVELOPMENT BOARD ماژول SIM800 در سایت همتا:

با وارد کردن شناسه دستگاه در بخش بررسی کد IMEI پیام زیر نمایش داده میشود که به معنای عدم نیاز به رجیستری می باشد
شناسه دستگاه قانونی نیست ولی مشمول طرح ثبت تلفن همراه نمی باشد

Technical Specification:

Quad-Band 850/900/1800/1900 Mhz
2G Connectivity
Control via Serial AT Commands
Selectable Serial Pins
Baud Rate: 19200 bps (8 bit/byte, No Parity, 1 Stop Bit)
Sends and Receives Voice, Data, and Text (SMS)
On-board Real-Time Clock (RTC)
Speaker and Headphone Jack
Low-power Sleep Mode (1.5 mA)
-40 °C – 80 °C
5V and 3.3V Compatible TTL Serial
Powered from DC Jack or 5V Pin (Slide Switch)
Requires 2A Power Source

Features:

Operating Voltage: 5 to 12V
Bandwidth: 850/ 900/ 1800/ 1900 MHz (2G GSM Network)
GPRS Multi-Slot: Class 12
GPRS Mobile Station: Class B
GPS: 22 Tracking / 66 Channels
Tracking Sensitivity: -165dBm

How to use:

Computer debugging USB TTL can. This module is powering: 5 V-26 V, 5 V 2A power recommendations. Plug in the Arduino main board, the power supply must be able to provide 2A current. The reason is that the current GPRS Shield boot and work up to the maximum peak current required 2A, but this USB port cannot provide as large as it currently is, this must be an external power supply equipment. Another way is to lead 3.7-4.5V pin power port for lithium battery power. Very compatible Arduino serial microcontroller. Compatible with 3.3 and 5 V TTL serial microcontrollers.
Ensure that your SIM card is unlocked
GPRS Shield communication baud rate preferably 19200 bps 8-N-1 (GPRS Shield automatic default that matches baud rate)
