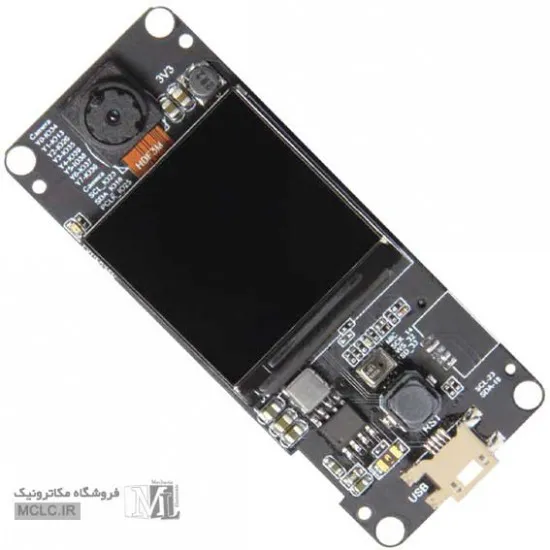

برد توسعه TTGO با دوربین LILYGO-CAMERA PLUS

Chipset ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT

FLASH QSPI flash/SRAM, up to 4 x 16 MB

SRAM 520 kB SRAM + 8MBytes External SPRAM

KEY reset, dispaly IPS Panel ST7789/1.3 Inch,

Power indicator lamp red, USB to TTL CP2104, Camera OV2640 2Megapixel,

on-board clock 40MHz crystal oscillator , working voltage 2.3V-3.6V, working current about 160mA,

working temperature range -40℃ ~ +85℃ size 69.13*28.41*8.45mm, Mic MSM261S4030H0,

Power management ChipSDCard Integrated external SD card slot

IP5306, Power Supply USB 5V/1A, charging current 1A,

WIFIbattery 3.7V lithium battery

Standard FCC/CE/TELEC/KCC/SRRC/NCC（esp32 chip）

protocol 802.11 b/g/n/e/i (802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval

frequency range 2.4GHz~2.5GHz(2400M~2483.5M)

Transmit Power 22dBm

Bluetoothcommunication distance 300m

protocol meet bluetooth v4.2BR/EDR and BLE standard

radio frequency with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH

Software Specificationaudio frequency CVSD&SBC audio frequency

wifi Mode Station/SoftAP/SoftAP+Station/P2P

security mechanism WPA/WPA2/WPA2-Enterprise/WPS

Encryption Type AES/RSA/ECC/SHA

firmware upgrade UART download/OTA（Through network/host to download and write firmware）

Software Development Support cloud server development /SDK for user firmware development

User Configuration AT + Instruction set, cloud server, android/iOSapp

ساخت شرکت Shenzhen Xin Yuan Electronic Technology Co با نام تجاری LilyGo
